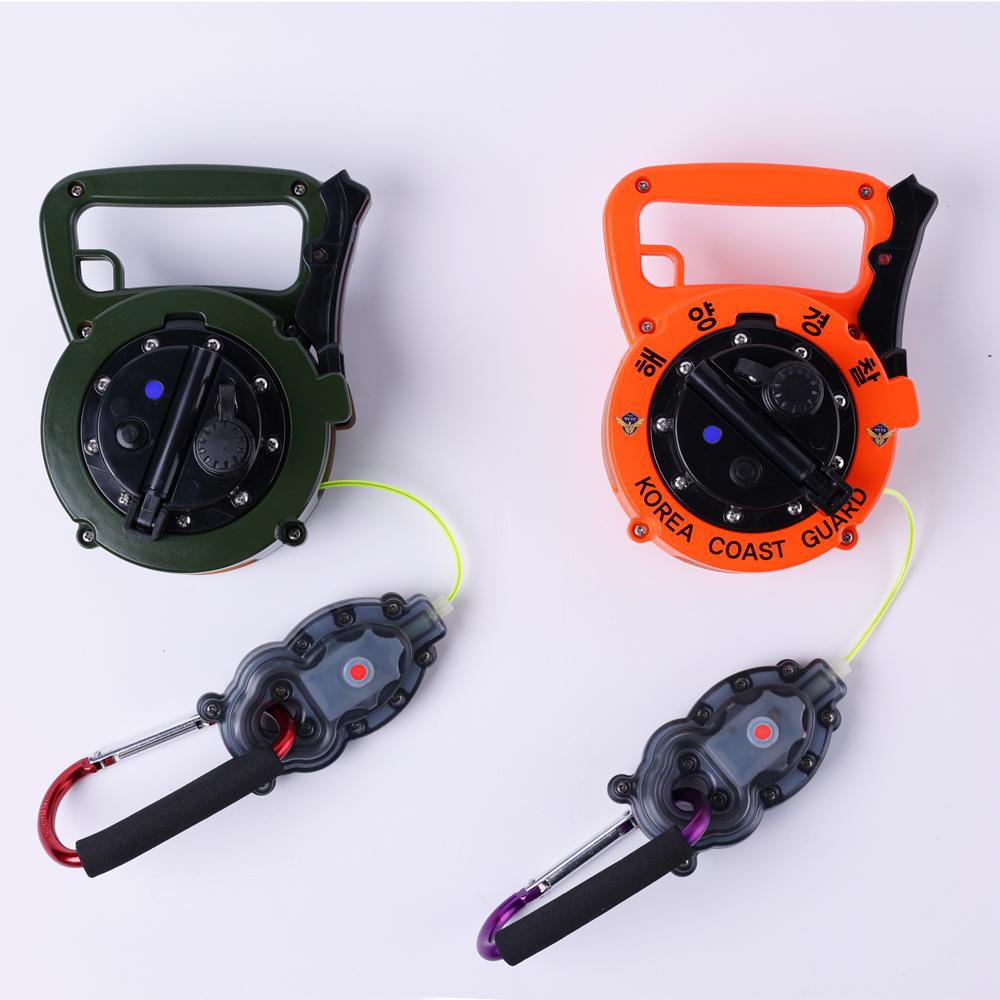

Light Line(for underwater)25M_4BDL-0252

  • Payment
    O/A , T/T
  • MOQ
    100 Set
  • Supply Ability
    1,000 Set per One-Time
  • Supply Details
    Customization Limited goods

    Negotiable / Depends on quantity

  • Country of sale
    Asia, World Wide, Americas, Europe, Middle East
  • PRICE
    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    4BDREAM
    Model 4BDL-0252
  • origin
    Republic of Korea
  • Size(Capacity)
    H200*W138*D93
  • Weight
    1.3kg
  • Color
    orange, black


PRODUCT DESCRIPTION

Light Line(for underwater)25M
Key Features
1. 25m high-visibility EL wire specialized for underwater rescue and evacuation
2. Waterproof performance rated for use up to 50m underwater
3. 3 brightness modes with flashing and visual alarm (lighting, 1/sec flash, 3/sec alarm flash)
4. Dual-signal communication system between main body and emergency handpiece
Advantages
1. Designed for single-person portable underwater operations
2. Rechargeable 7.2V, 5.2A lithium-ion battery
3. Separate On/Off switch minimizes self-discharge (No recharge needed for up to 10 years when unused)
4. UL94-V0 flame retardancy and brightness ≥ 30 cd/㎡
5. Patent registered in Korea, CE certified
Components
1. Main body (handle-type)
2. Charging adapter
3. User manual
How to Use
1. Charge the battery fully before use.
2. Press the power button to activate lighting.
3. Use the mode switch to toggle between lighting, flashing (1 blink/sec), and visual alarm (3 blinks/sec).
4. Use the emergency button on the handpiece during urgent situations.
5. After operation, rotate the winding handle clockwise to retract the EL wire evenly.
Cautions
1. Do not use for purposes other than underwater evacuation guidance.
2. Do not disassemble or modify the product—this voids warranty.
3. Do not wrap EL wire around body parts.
4. Stop use if smoke, abnormal heat, or burning smell occurs.
5. Clean surface only with soft cloth; avoid strong detergents or chemicals.
6. EL wire damage may lead to electric shock or short circuit—stop use and request service if damaged.
Specification
Model name 4BDL-0252(for underwater)
Dimension H200 x W138 x D93mm
Weight 1.3kg ± 0.3kg
Light Line Length / Diameter 25m ± 0.5m / 3.0mm ± 0.3mm
Flame Retardant UL94-V0
Brightness Luminance 30cd/m2 and more
Light-emitting line High Carbon Steel Wire inserted with tensile strength 2,200N/mm2 and more
Waterproof Depth of water 50m
Portability Single Operation
Power Rechargeable Lithium-ion battery 7.2V, 5.2A
Operating Time Flashing(1 blink per 2 second)-600min, Light on-360min,
Flashing(1 blink per second)-600min, Visual alarm(3 blink per second)-650min
Certified Excellent Procurement, CE Certification
